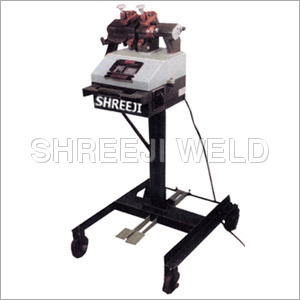

Wire Butt Welder

Wire Butt Welder
Wire Butt Welder
Product Code : 04
Brand Name : SHREEJI WELD INDUSTRIE
Product Description
Our company is enlisted as a noted manufacturer, trader and supplier of Wire Butt Welder. This is designed as portable models on movable trolley stand, with foot pedal release and spring loaded clamping devices. In addition to this, in order to meet the requirements of the customers, this is further provided with precision spring along with movable platen. These ensure accurate and frictionless travel and perfect alignment of the weld. Apart from this, other details of the offered Wire Butt Welder are mentioned below:

Specifications


Clamps

Spring loaded copper alloy clamps, of precision quick acting design ensure firm preset clamping pressure. Each clamp is released by individual foot pedal.

Electrodes

Special wear resisting copper alloy electrodes provided with precision V-grooves for different wire size permit rapid and accurate alignment of wires.

Adjustment of welding current

Rotary swith, mounted on side permits, easy manipulation of the welding current from 50% - 100% in 6 steps.

Variation of Initial Upset Gap

Obtained by the adjustment of the level set against a calibrated plate mounted on the movable platen. Adjustment of Upset Pressure Obtained by means of an adjustable calibrated dial mounted on the fixed platen.

Weld Current Initiation and Cut Off


Automatic, current make and break via magnetic contractor, incorporated. Current initiation effected by a manual push button fitted on one side of the fixed platen and current cut off effected automatically in relation to the preset upsetting distance.

Annealing Facility

Separate annealing electrodes for annealing of the welded wire provided.

Trolley Type

Stand Each machine is mounted on a wheeled trolley type stand provided with brakes.

Different models available suitable to weld m.s / h.c / s.s / copper / brass / aluminum wires. Capacity 1 –8 mm.
